SD Card real time data recorder
3 PHASE POWER ANALYZER
Model : DW-6092
* Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
* Voltage & Current are the True RMS value.
* True Power ( KW MW GW ).
* Apparent Power ( KVA MVA GVA ).
* Reactive Power ( KVAR, MVAR GVAR ).
* Watt-Hour ( WH SH QH PFH ).
* Power Factor ( PF ) Phase Angle ( ø ).
* Voltage range : 10 to 600 ACV.
* Current range: 0.2 to 1200 ACA.
* Programmable CT ratio ( 1 to 600 ) and PT ratio ( 1 to 1000 ).
* ACV input impedance is 10 Mega ohms.
* Safety Standard : IEC 1010, CAT III 600V.
* Built-in clock and Calendar, real time data record with SD memory card , sampling time can be set from 2 to 7200 seconds.
Just slot SD card into the computer, all the measured values with the time information ( year, month, data, hour, minute, second )
can be downloaded to the Excel directly, then user can make the further data analysis by themselves.
* Powered by DC 1.5 V ( UM-3/AA ) x 8 PCs batteries ( Alkaline type ) or DC 9V adapter.

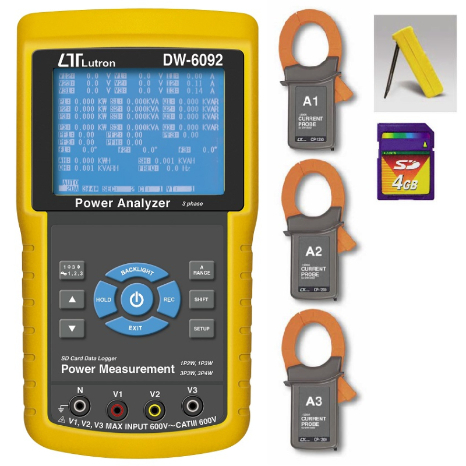

* Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe, AC to DC 9V adapter, 2 G SD memory card and Carrying bag.
* RS232/USB computer interface.
* Optional USB cable, USB-01.
* Optional RS232 cable, UPCB-02.
* Optional data acquisition softwares, SW-U811, SW-E802.
