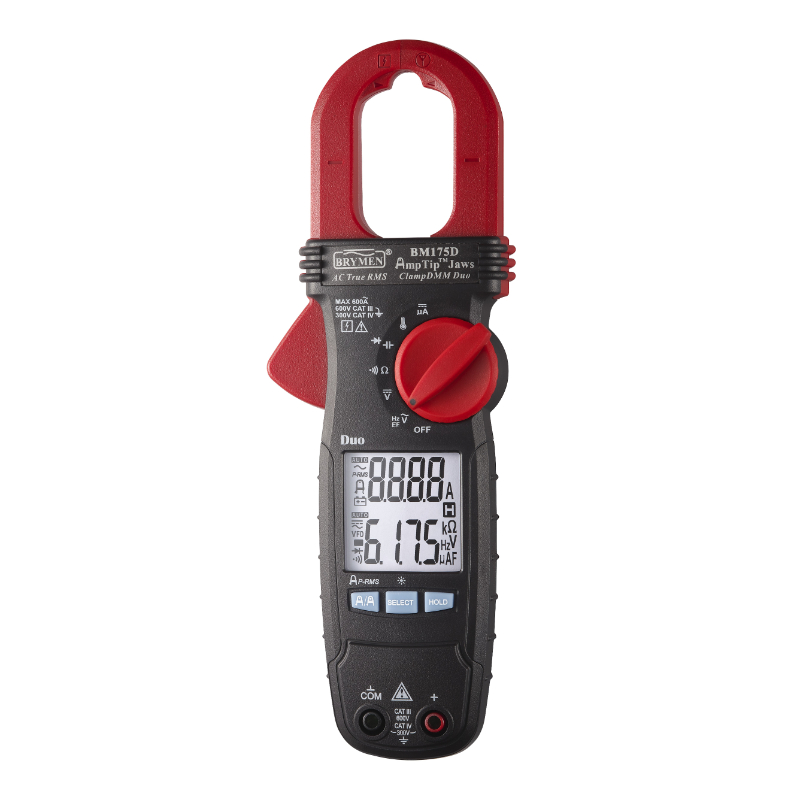

BM175D Convenient Clamp DMM Duo
GENERAL SPECIFICATIONS
• VFD-V & Hz For Fundamental V/Hz Of Most Variable-Frequency-Drives
• Fast Measurement Updates 5/Sec
• Dual 3-5/6 Digits 6,000 Counts Large LCD Display
• Duo-Core To Simultaneously Measure Clamp-On Amps + A DMM Function
• 30mm Conductor Size Ultra-Slim 600A AC Jaws
• AmpTipTM Low-Current-Range Calibrated At Jaw-Tip For Slim-Conductors
• AC True RMS Voltage And Current Functions
• Intelligent Auto Power Off
• Data HOLD
• Fast 80ms PEAK-RMS Mode To Capture In-Rush Currents
• Back-Lighted Easy-To-Read LCD Display
• Non-Contact EF-Detection (NCV), Selectable Hi/Lo Sensitivities
• Probe-Contact EF-Detection For More Precise Indication Of Live
• 3Ф-Rotation-R For Supply Systems (Probe-Contact)
• 3Ф-Rotation-M (Hi-Sensitivity Mode) For Motors (Probe-Contact)
• Type-K Temperature -10.0°C To 400°C Or 14.0°F To 752°F Selectable
• DCµA Ranges 200.0µA To 2000µA (Via Leads) For HVAC Flame Sensors
• ACA Ranges 60.00A To 600.0A + AmpTipTM ACA 60.00A Range
• DCV Range 600.0V
• ACV Range 600.0V
• Ohm Ranges 600.0Ω To 6000kΩ
• Cx Ranges 200.0µF To 2500µF For Start & Run Motor Capacitors
• Diode Test
• Fast Audible+Visible Continuity
• Line-Level ACV Frequency 10.00Hz To 999.9Hz
• Soft Carrying Pouch
• Rugged Fire Retarded Casing With Battery Access Door
• Transient Protection 6kV 1.2/50µS Lightning Surge
• LVD EN61010-2-032 & EN61010-1 CAT III 600V & CAT IV 300V
• EMC EN61326-1:2013
